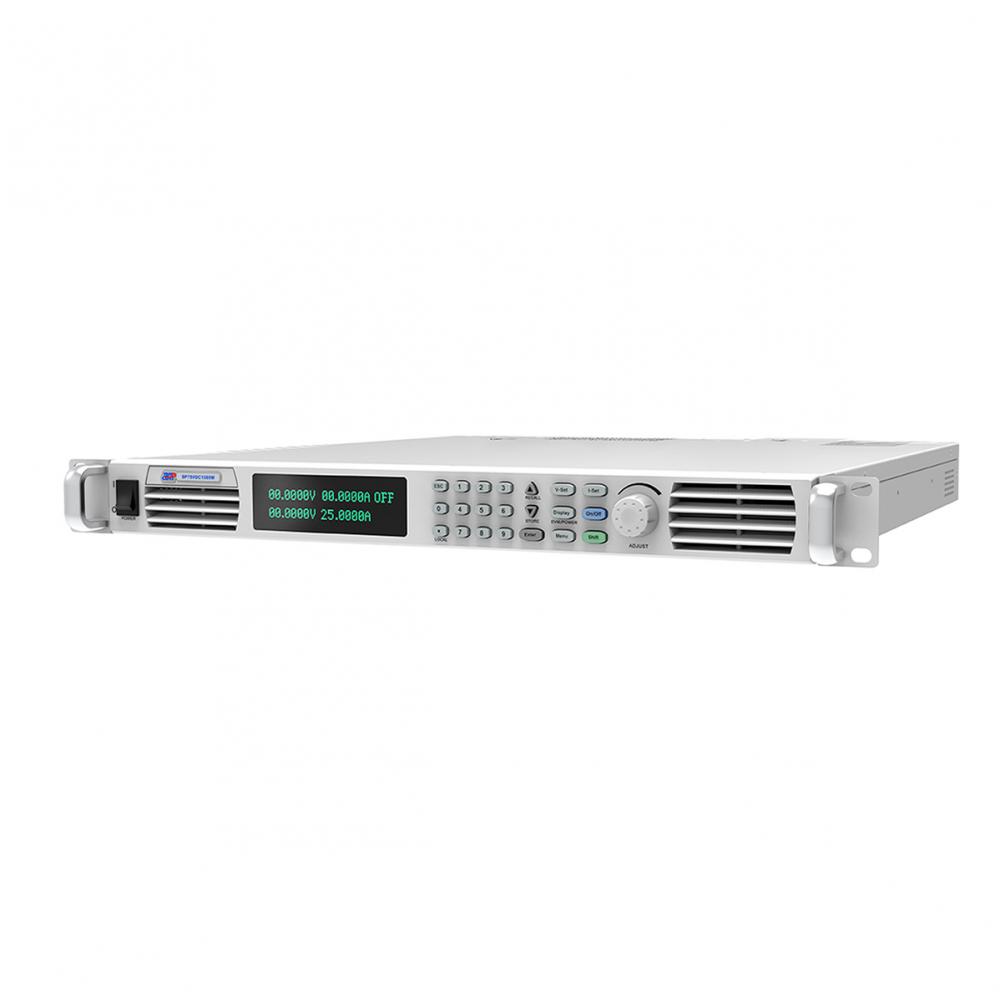

0-20V programmierbares Gleichstromversorgung
  • 0-20V programmierbares Gleichstromversorgung
  • 0-20V programmierbares Gleichstromversorgung
  • 0-20V programmierbares Gleichstromversorgung

0-20V programmierbares Gleichstromversorgung

$1 - 10 /Others
option:
Share:
Chat Jetzt
  • Produktbeschreibung
< >
Overview
Produkteigenschaften

Modell: 20VDC series(1U Type)

Marke: APM

Herkunftsort: China

Input Voltage: 90~265V

Input Frequency: 47~63Hz

Power Factor: ﹥0.98

Output Voltage Range: 0~20V

Output Current Range: 0~60A

Output Power Range: 0~1200W

Height: 1U

Warranty: 2 years

Remote Compensatiom: 4V MAX

Lieferfähigkeit & Zusatzinformationen

Verpakung: Kartons

Produktivität: other

Transport: Air

Ort Von Zukunft: CHINA

Unterstützung über: other

Zertifikate : ISO9001/CE/ROHS/CSA/UL

HS-Code: 8504401990

Hafen: DHL

Zahlungsart: T/T

Incoterm: EXW

Verpackung & Lieferung
Verkaufseinheiten:
Others
Pakettyp:
Kartons
Bildbeispiel:

Produkteinführung:

APM 20VDC series is 0-1200W programmable dc power supply . OVP, OCP, OTP, and OPP protect the power supply and its loads from unexpected conditions. Has large LCD panel display output and parameter simultaneously and a key lock feature to prevent changing the settings. It is single output 15 volt power DC supply features wide-adjust output voltages from 0V-20V and offers output power range from 0-600W to 0-1200W.

Except the 20v Dc Power Supply,it could be also have higher voltage opition for 32v Dc Power Supply,40v Dc Power Supply,kindly check more with the regional sales.



Anwendungsbereiche:

● Automobile Sector: Used for automobile electronics product testing,and simulation of the voltage waveform of automobile under different conditions.
● LED Sector: Used for LED driver and LED product testing and burn-in test.
● Automatic Testing Sector: Can be integrated in automatic testing system to test electricity parameters, and to supply power to the products under testing.
● Medical Field:Used for medical device testing or it being integrated in medical equipment.
● Communication Sector: Used for the tests of communication power supply and electronic devices.
● Household Field:Used for household products test.
● Scientific Research Sector:Used in scientific research units, colleges & universities,and certification institutions for laboratory testing and power supply.
● Aerospace Sector: Used for aviation electronic products testing and power supply.


Produktfunktionen:

● With accurate voltage and current measurement capability.
● Coded knobs, multifunctional keyboard.
● Standrad RS232/RS485/USB interface.
● Remote sensing to compensate for voltage drop in load leads.
● DVM independent measurement functions.
● Function of editing List waveform.
● Use SCPI commands.

● CE certified.


Product Advantages:
(1)High efficiency
APM programmable 20VDC source has an operating efficiency of up to 85%. In the circuit design, switch tube is using zero (0) voltage conductor and when the circuit is running, the damage inflicted on the device itself is reduced, and subsequently increase the overall efficiency while lowering the rate of temperature rise of the DC source. Compare with other similar types of product in markets, APM Technologies' programmable DC source has an obvious advantage.

(2)Ultrafast Respond Time

The unique fast drop function makes the response of APM programmable DC source much better than that of any other similar products available on the market.

Model SP20VDC600W SP20VDC1000W SP20VDC1200W

response(voltage rise time)

≤10ms

response(voltage drop time)

≤150ms(No load)

≤150ms(No load)

≤150ms(No load)

≤20ms(Full load) ≤15ms(Full load) ≤12ms(Full load)
(3)DVM measurement function
 APM programmable DC source's built-in DVM independent measurement function can measure the value of output voltage at the output terminal, and display the value at VFD screen by switchover the front-panel buttons. The DC source can also be used as external equipment in laboratory testing to measure the voltage values.

(4)Master/Slave Control

In the master-slave control mode, up to 10 units of APM programmable DC source can be used in a series or parallel mode.
Master-slave control mode can realize the effect as "a hundred responses to a (single) call". Once the master-slave mode is settled, "SLAVE" will be locked in the main interface and exclusively controlled by "MASTER". When there is a "SLAVE" signaling of protection mode, all the DC sources will turn off and exit master-slave mode.

(5) Series Mode Functions

APM programmable 20 VDC source via its RS485 interface can be operated by using up to 31 units of the device ,thus makes it possible to simultaneously control all the DC sources connected on RS485 from PC.

Technical Specification:


 Model
 SP20VDC600W
 SP20VDC1000W
 SP20VDC1200W
1 Input Voltage Range
 90-265VAC
2 Input Frequency Range
 47-63HZ
3 Power Factor
 >0.98
4 Input Power
 750VA(MAX)
 1300VA(MAX)
 1500VA(MAX)
5 Output Voltage Range
 0-20V
6 Output Current Range
 0-60A
7 Voltage Load Regulation
 10mV
8 Current Load Regulation
 60mA
9 Voltage Setting Accuracy
 0.05%+15mV
10 Current Setting Accuracy
 0.1%+60mA
11 Voltage Measurement Accuracy
 0.05%+15mV
12 Current Measurement Accuracy
 0.1%+60mA
13 Voltage Ripple[1]
 40mVp-p/6mVrms
14 Current Ripple[1]
 60mA (Full Range)
20mA (TYP value)
15 Voltage Temperature Coefficient[2]
 100ppm/℃
16 Current Temperature Coefficient[2]
 150ppm/℃
17 DVM Resolution
 0.1mV
18 DVM Accuracy
 0.05%+15mV
19 Remote Compensation
 4V MAX
20 Load Transient Response Time
 ≤2ms
21 Command Response Time
 50ms
22 Efficiency(Full Load)
 85%
 85%
 84%
23 Protection Function
 OVP/OCP/OTP/OPP/SCP/Fold back function
24 Weight
 9.5kg
25 Communication Modes
  RS232/RS485/USB
26 Operating Environment
 Temperature 0~40℃,Relative Humidity 10%~90%(no condensation)

[1] Test Condition: Voltage ripple, CV (Constant Voltage) mode-rated output voltage (Vp-p 20MHZ, Vrms 1.25MHZ); Current ripple: CC (Constant Current) mode (Arms 1.25MHZ)
Current ripple typical value parameter standard, test under condition that nominal voltage of the model is fully loaded, at the same time, when the full range output voltage of the model is full load output, the effective value of the current ripple is among the gamut Referenzbereich.
[2] Test Condition: Ambient temperature is among 0~40℃
