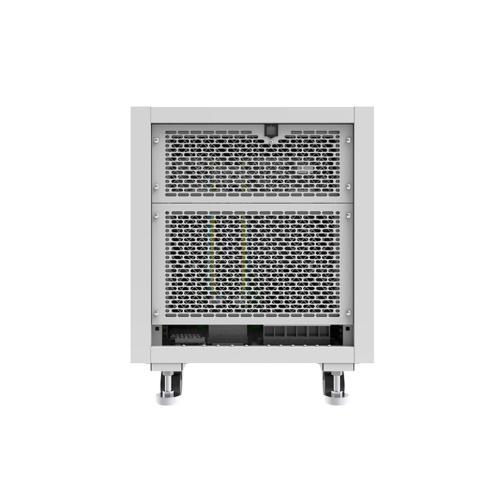

APM Technologies Ltd
Modell: SPS150VDC12000W-2-13
Marke: APM
Herkunftsort: China
Input Voltage: 190~265VAC
Input Frequency: 47~63Hz
Input Power Max: 15KW
Power Factor: ≥0.98
Output Voltage Range: 0~150V
Output Current Range: 0~90A
Output Power Range: 0~12000W
Height: 13U
Warranty: 2 years
Verpakung: Kartons
Produktivität: other
Transport: Air
Ort Von Zukunft: CHINA
Unterstützung über: other
Zertifikate : CE
HS-Code: 8504401990
Hafen: DHL
Zahlungsart: T/T
Incoterm: EXW
Möchten Sie programmierbare DC -Stromversorgung Indien finden? APM hat Distributoren in Indien und senden Anfrage, um das beste Angebot zu erhalten. Wir bieten ein 6U -DC -Rack -System an, das maximal 12 kW liefern kann, indem die interne einheit parallele Einheit oder Serie angeschlossen wird. Die Spannung kann max. 450 V in der Reihe sein und Strom kann maximal 90A in paralleler Verbindung sein.
Es gibt mehr Modelle, 40 V DC -Quellsystem, 75 -V -DC -Quellsystem, 120 V DC -Quellsystem, 200 V DC -Quellsystem, 600V DC -Quellsystem, 800 -V -DC -Quellsystem für Ihre Referenz.
Bewerbungsbereich :
Diese Serie gilt für mehrere Sektoren wie Elektro-, Beleuchtungs- und Luftfahrtsektoren und kann auch auf den Produktionstest von Enterprise angewendet werden.
Produktfunktionen:
● Mit genauen Spannungs- und Strommesskapazität.
● codierter Knopf, Multifunktionstastatur.
● Standard RS232/RS485/USB -Kommunikationsschnittstellen, LAN und GPIB sind optional.
● Fernerkennungsspannungsabfallkompensation.
● Räumen mit der Listen -Wellenform -Bearbeitungsfunktion.
● Verwenden Sie die Standardbefehle für das Kommunikationsprotokoll für programmierbare Instrumente (SCPI).
● haben eine CE -Zertifizierung erhalten.
Technische Spezifikation:
| ltem | MODEL | SYS150VDC12000W | |
| INPUT | |||
| 1 | Voltage | 190~265VAC | |
| 2 | Frequency | 47~63Hz | |
| 3 | Phase | 3 Phase,4Wire+Groud/Y Connect | |
| 4 | Max.Current | 75A | |
| 5 | Input Power Max | 15kW | |
| 6 |
Power Factor at 220VAC Input ,Full Load |
0.98 Min. Active PFC | |
| 7 | Efficiency | >88% Max @Full Load and Units=4kW Model | |
| OUTNPUT (Parallel Mode) | |||
| 8 | Output Voltage | 0~150V | |
| 9 | Output Current | 0~90A | |
| 10 | Output Power | 12kW Max | |
| 11 | Load Regulation | Voltage | 120mV |
| 12 | Current | 0.09A | |
| 13 | Line Regulation | Voltage | 0.02%F.S.+30mV |
| 14 | Current | 0.02%F.S.+15mA | |
| 15 | Voltage Setting | Range | 0~150V |
| 16 | Resolution | 1mV | |
| 17 | Accuracy |
0.1%+0.1%F.S. at 0< Ouput
Voltage =<75Vdc 0.05%+0.05%F.S. at 75Vdc< Ouput Voltage =<1200Vdc |
|
| 18 | Current Setting | Range | 0~90A |
| 19 | Resolution | 1mA | |
| 20 | Accuracy | 0.1%+0.10%F.S | |
| 21 | Ripple | Voltage | 160mVp-p/30mVrms |
| 22 | Current | 90mA(Full Range),15mA(TYP Value) | |
| MEASUREMENT (Parallel Mode) | |||
| 23 | Voltage Setting | Range | 0~150V |
| 24 | Resolution | 1mV | |
| 25 | Accuracy |
0.1%+0.1%F.S. at 0< Ouput
Voltage =<75Vdc |
|
| 26 | Current Setting | Range | 0~90A |
| 27 | Resolution | 1mA | |
| 28 | Accuracy | 0.1%+0.10%F.S | |
| OUTNPUT (Series Mode) | |||
| 29 | Output Voltage | 0~450V | |
| 30 | Output Current | 0~30A | |
| 31 | Output Power | 12kW Max | |
| 32 | Load Regulation | Voltage | 120mV |
| 33 | Current | 0.09A | |
| 34 | Line Regulation | Voltage | 0.02%F.S.+30mV |
| 35 | Current | 0.02%F.S.+15mA | |
| 36 | Voltage Setting | Range | 0~450V |
| 37 | Resolution | 10mV | |
| 38 | Accuracy |
0.1%+0.1%F.S. at 0< Ouput
Voltage =<75Vdc 0.05%+0.05%F.S. at 75Vdc< Ouput Voltage =<1200Vdc |
|
| 39 | Current Setting | Range | 0~30A |
| 40 | Resolution | 0.1mA | |
| 41 | Accuracy | 0.1%+0.10%F.S | |
| 42 | Ripple | Voltage | 120mVp-p/22.5mVrms |
| 43 | Current | 120mA(Full Range),20mA(TYP Value) | |
| MEASUREMENT (Series Mode) | |||
| 44 | Voltage Setting | Range | 0~450V |
| 45 | Resolution | 10mV | |
| 46 | Accuracy |
0.1%+0.1%F.S. at 0< Ouput
Voltage =<75Vdc 0.05%+0.05%F.S. at 75Vdc< Ouput Voltage =<1200Vdc |
|
| 47 | Current Setting | Range | 0~30A |
| 48 | Resolution | 0.1mA | |
| 49 | Accuracy | 0.1%+0.10%F.S | |
| Extra Function | |||
| 50 | Remote Sense | Range | 5V(DC), Max. Total power less than rated power |
| 51 | Comm. Respondence. | 50ms | |
| 52 | Graphic Display | VFD | |
| 53 | Operation Key Feature | Soft key,Numberic key,Rotary Knob | |
| 54 | Rack mount Handles | Yes | |
| 55 | FAN | Temperature Control | |
| 56 | Protection Circuits | OCP, OVP, OPP, OTP,FAN | |
| 57 | Interface | USB, RS485, RS232(Standard); LAN,GPIB(Option) | |
| Remote Control Input/Output signal characteristics | |||
| 58 | Remote Input signal | Not Support | |
| 59 | Remote output signal | Not Support | |
| Environmental | |||
| 60 | Operating Temperature | 0°C~40°C | |
| 61 | Storage Temperature | -20°C~70°C | |
| 62 | Altitude | 2000m | |
| 63 | Relative Humidity | 10%~90%, non-condensing | |
| 64 | Temperature Coefficient | 100ppm/°C at Voltage, 300ppm/°C at Current | |
| Mechanical | |||
| 65 | Dimensions(W*H*D) | 600.0*736.0*700.0 mm | |
| 66 | Package Dimensions(W*H*D) | 720.0*910.0*820.0 mm | |
| 67 | Unit Net Weight | 54kg+15kg*N(REF) | |
| 68 | Accessories Weight | 0.4kg | |
| 69 | Shipping Weight | 94kg+15kg*N(REF) | |
| Regulatory Compliance | |||
| 70 | CE Mark | Installation Overvltage Category II;Class II equipment;indoor use only. | |
Produktgruppe : DC -Quellsystem > 150V DC Source System
