APM Technologies Ltd

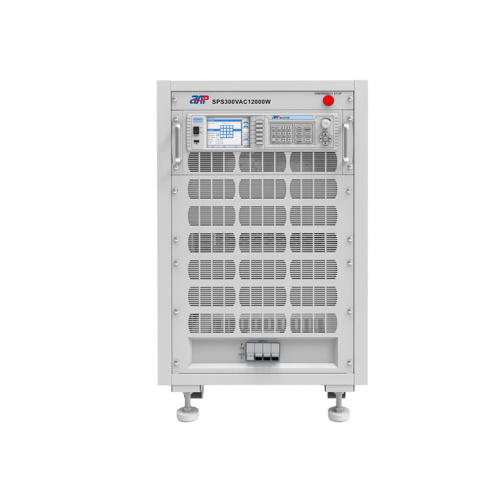

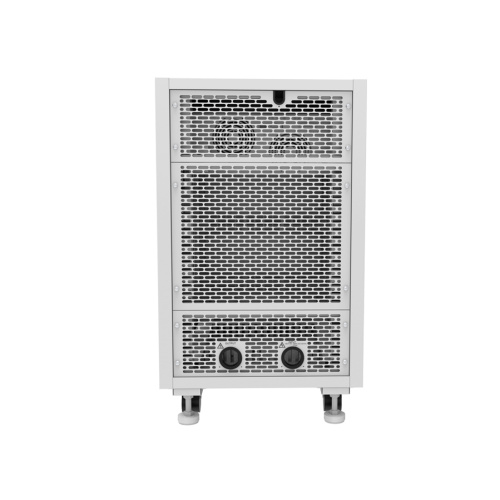

Modell: SPS300VAC12000W
Verpakung: Kartons
Transport: Air
Hafen: DHL
Zahlungsart: T/T
Incoterm: EXW
Das Hauptgeschäft unseres Unternehmens ist: programmierbare Stromversorgungen, DC -Netzteile, Wechselstromversorgungen, elektronische DC -Last, Dreiphasen -Wechselstrom -Quellsystem, Labor -Stromversorgung usw. Bitte kontaktieren Sie uns, um weitere Informationen zu erhalten.
Bewerbungsbereich :
Diese Serie gilt für mehrere Sektoren wie Elektro-, Beleuchtungs- und Luftfahrtsektoren und kann auch auf den Produktionstest von Enterprise angewendet werden.
Produktfunktionen:
● 5.6`` großer Touch -Farbbildschirm, besitzen Sie vollständige Funktionen und einfach zu bedienen.
● Unterstützung für USB -Datenimport/Exportieren und Bildschirm -SNAP von der Frontplatte.
● AC+DC Misch oder unabhängiger Ausgangsmodus für Spannungs -DC -Offset -Simulation.
● Unterstützung des Konstantstromausgangsmodus in der Lage, Spannung und Stromausgangsbeschränkung festzulegen.
● In der Lage, die Ausgangsneigung mit Spannung und Frequenz einzustellen.
● Ein-/Aus -Phasenwinkel einstellen.
● Mit dem Rückwärtsstromschutz, um den nach hinten fließenden Strom zu vermeiden.
● Eingebautes Leistungsmesser, das 5 elektrische Parameter pro Phase messen kann, einschließlich Spannung, Strom, Strom usw.
● Unterstützen Sie die MA -Strommessfunktion.
Basisfunktionen:
1. Einstellbarer Phasenwinkel/Steigung
Einstellbarer Phasenwinkel/Steigung gilt für den Überprüfungstest von Ein/Aus -Inrush -Stromtests. Diese Funktion gilt für die induktive oder kapazitive Belastung mit großer Kapazität, um einen hohen Strom zu vermeiden, wenn das Gerät sofort startet.
2. Hocher Ausgangsstrom Crest -Faktor
Der Überspannungsstrom könnte 5-6 Mal des Nennstroms erreichen, insbesondere für Einschaltstromtests.
3. Ausgangsimulationssequenz und Störungssimulation
In der Lage, Stromleitungsstörungssimulationstest zu simulieren.
Erweiterte Funktionen :
1. Bauen Sie in IEC-Standard-Test
Der integrierte IEC-Standard-Test kann direkt zurückgerufen werden.
2,3-Phasen-Betrieb und Parallelmodus
Unterstützung des 3-Phasen-Betriebs, 3 Einheiten parallelTechnische Spezifikation:
| MODEL | SPS300VAC12000W | ||
| INPUT | |||
| 1 | Voltage | 190~265VAC | |
| 2 | Frequency | 47~63Hz | |
| 3 | Phase | 3 Phase,4Wire+Groud/Y Connect | |
| 4 | Max.Current | 75A | |
| 5 |
Power Factor @220Vac Input ,Full Load |
0.99 Min. Active PFC | |
| 6 | Effieciency |
>87% Max >86% @220Vac,50HZ input/230Vac,50HZ output |
|
| 3-Phase Output Mode | |||
| 7 | AC Power(Per Phase) | 4000VA | |
| 8 | AC Power(Total) | 12000VA | |
| 9 |
Max.Current (r.m.s) |
0~150V(L) | 32A |
| 0~300V(H) | 16A | ||
| 10 |
Max.Current (Peak) |
0~150V(L) | 160A |
| 0~300V(H) |
80A |
||
| Parallel Phase Mode | |||
| 11 |
Max.Current (r.m.s) |
0~150V(L) | 96A |
| 0~300V(H) | 48A | ||
| 12 |
Max.Current (Peak) |
0~150V(L) | 480A |
| 0~300V(H) | 240A | ||
| 13 | Phase | 1 Phase | |
| OUTPUT | |||
| 14 | Total Harmonic Distortion(THD) |
<0.5% (Resistive Load) at 15.0 -
70.0Hz and output voltage within the 80 - 140Vac at Low Range or the 160 -
280Vac at High Range <1% (Resistive Load) at 70.1 - 500Hz and output voltage within the 80 - 140Vac at Low Range or the 160 - 280Vac at High Range <1% (Resistive Load) at 501 - 1000Hz and output voltage within the 100 - 140Vac at Low Range or the 160 - 280Vac at High Range |
|
| 15 | Crest Factor(CF) | ≤5 | |
| 16 | Load Regulation |
+/-0.2%FS @15-100HZ(Resistive
Load) +/-0.5%FS @ Others Freq.(Resistive Load) |
|
| 17 | Line Regulation | ±0.1V | |
| 18 |
Voltage(AC) (L-N) |
Range | 0~300VAC, 150V/300V/Auto Mode |
| Resclution | 0.1V | ||
| Accuracy | 0.2% of setting +0.4%F.S at Voltage>3V | ||
| 19 |
Phase
Angle (Starting/Ending) |
Range | 0~359.9° |
| Resclution | 0.1° | ||
| Accuracy | ±1° @45~65Hz | ||
| 20 | Voltage(DC) | Range | 0~424VDC |
| Resclution | 0.1V | ||
| Accuracy | 0.2% of setting +0.4%F.S at Voltage>3V | ||
|
DC Power |
4000W | ||
|
Max.Current (L/H Range) (Per Phase) |
L 22.6A | ||
| H 11.3A | |||
| DC Power(Total) | 12000W | ||
|
Max.Current (L/H Range) (Total) |
L 67.8A | ||
| H 33.9A | |||
| Ripple&Noise(r.m.s) |
L <700mVrms
@Bandwidth 20HZ to 1MHZ |
||
| Ripple&Noise(Peak) | <4000mVp-p @Bandwidth 20HZ to 1MHZ | ||
| 21 | Current OC Fold Mode | Resclution | 0.1A |
| Accuracy | 2.0% of setting +1.0%F.S. | ||
| Response Time | <1400ms | ||
| 22 | Frequency | Range | 15~1000Hz |
| Resclution | 0.1Hz(15.0~99.9Hz) ,1Hz(100~1000Hz) | ||
| Accuracy | 0.03% of setting | ||
| 23 | Progrmmable Output Impedance | Not Support | |
| 24 | Harmonic & Inter-harmonics Simulation | Not Support | |
| MEASUREMENT(Per Phase) | |||
| 25 |
Voltage (Per Phase) |
Range | AC 0~300VAC |
| DC 0~424VDC | |||
| Resclution | 0.1V | ||
| Accuracy | 0.2% of setting +0.4%F.S. (Notes: Vpeak: 0.6% of setting +1%F.S.) | ||
| 26 |
Frequency (Per Phase) |
Range | 15~1000Hz |
| Resclution | 0.1Hz(15.0~99.9Hz) ,1Hz(100~1000Hz) | ||
| Accuracy | 0.1% of setting | ||
| 27 |
Current* (r.m.s) (Per Phase) |
Range | H 0.3A~32A |
| M 0.2A~20A | |||
| L 0.1A~5A | |||
| mA 0.02A~1.5A | |||
| Resclution | 0.01A | ||
| Accuracy | 0.4%+1.0%F.S. | ||
| 28 |
Current* (PEAK) (Per Phase) |
Range | 0A~163A |
| Resclution | 0.01A | ||
| Accuracy | 0.4%+1.5%F.S. | ||
| 29 |
Power (Per Phase) |
Range | 0~4080W |
| Resclution | 0.1W | ||
| Accuracy | 0.4% of setting +0.3%F.S at PF>0.2, Voltage >5V | ||
| 30 |
Power
Apparent |
Range | 0~4080VA |
| Resclution | 0.1VA | ||
| Accuracy | Voltage*Irms,Calculated value | ||
| 31 |
Power Resistive (VAR) (Per Phase) |
Range | 0~4080VAR |
| Resclution | 0.1VAR | ||
| Accuracy | √[(VA)^2-(W)^2],Calculated value | ||
| 32 |
Power Factor (PF) |
Range | 0.00~1.00 |
| Resclution | 0.01 | ||
| Accuracy | W/VA, Calculated value | ||
| 33 | Harmonic | Range | Not Support |
| Extra Function | |||
| 34 | Slew Rate | Range | AC Voltage 0.001-1200.00V/mS and Disable |
| DC Voltage 0.001-1000.00V/mS and Disable | |||
| Frequency 0.001-1600.000HZ/ms and Disable | |||
| 35 | Remote Sense | Range | 5V(RMS), Max. Total power less than rated power |
| 36 | Cablibration |
Firmware-based cablibration through
the digital interface or front panel display Noted: Need Factory setting |
|
|
37 |
Test Mode | Not Support | |
| 38 | Graphic Display | 5.6'' Color touch LCD | |
| 39 | Operation Key Feature | Soft key,Numberic key,Rotary Knob,Support USB disk | |
| 40 | Rack mount Handles | YES | |
| 41 | FAN | Temperature Control | |
| 42 | Protection Circuits | OCP, OVP, OPP, OTP, RCP, PRI_UVP, PRI_OVP, PRI_OTP, PRI_OCP, USB_OCP | |
| 43 | Interface | Standard USB,RS485,RS232, Option GPIB interface | |
| Environmental | |||
| 44 | Operating Temperature | 0°C to 40°C | |
| 45 | Storage Temperature | -40°C to 85°C | |
| 46 | Altitude | 2000m | |
| 47 | Relative Humidity | 5-95%, non-condensing | |
| 48 | Temperature Coefficient | 100ppm/°C at Voltage, 300ppm/°C at Current, 100ppm/°C at FREQ | |
| Mechanical | |||
| 49 | Dimensions(W*H*D) | 560x945x700 mm | |
| 50 | Unit Net Weight | 157.0kg | |

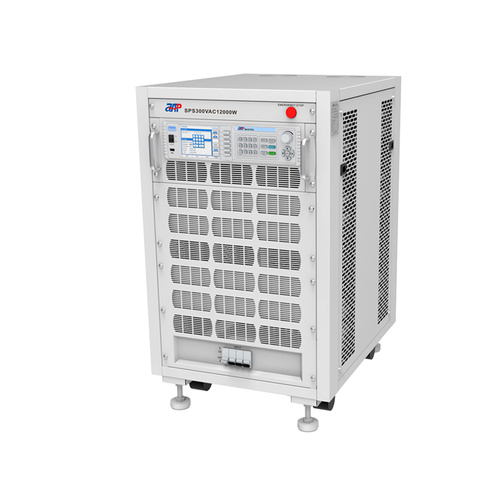

Produktgruppe : Dreiphasiges Wechselstromquellensystem > 12000W Dreiphasen-AC-Quellensystem
